Our Liquid Transport Tanks are designed for safely transporting and storing both water and waste, including toilet effluent and slurry. Available in capacities from 240 to 10,000 litres, they’re ideal for construction, agriculture, events and back-up supply.

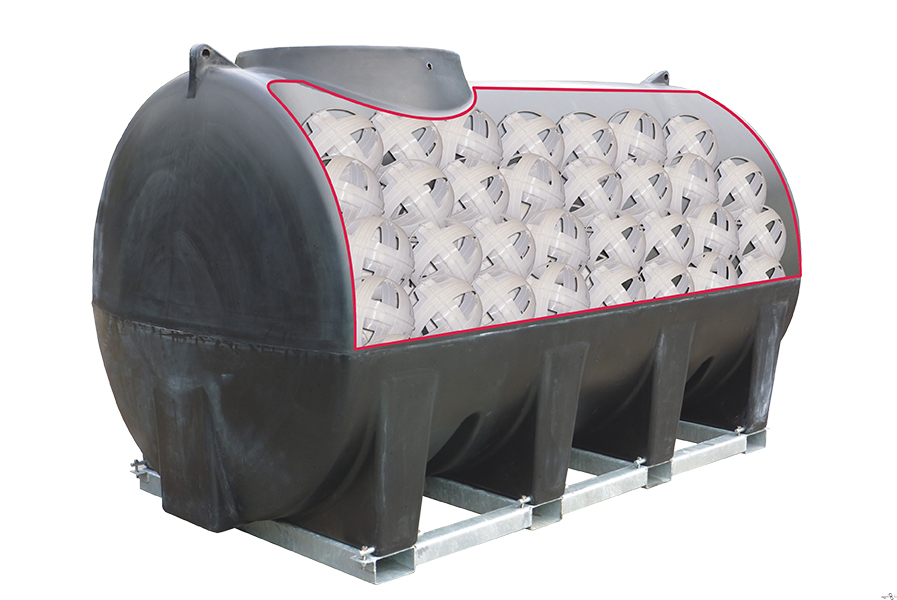

Mounted horizontally, they can be fitted with drain valves, pump plates, and baffle balls to reduce surge when on the move.
Built to carry liquids with a specific gravity of up to 1.5, they come with mounting points and are compatible with a range of connectors and fittings to suit your setup.
- Tough One Piece Construction
- Moulded from durable, UV-stabilised medium density polyethylene (MDPE) for long service life in demanding waste storage applications
- Low Profile, Stable Design
- Horizontal layout ensures excellent stability on flat surfaces, ideal for sitting alongside welfare cabins as emergency waste storage

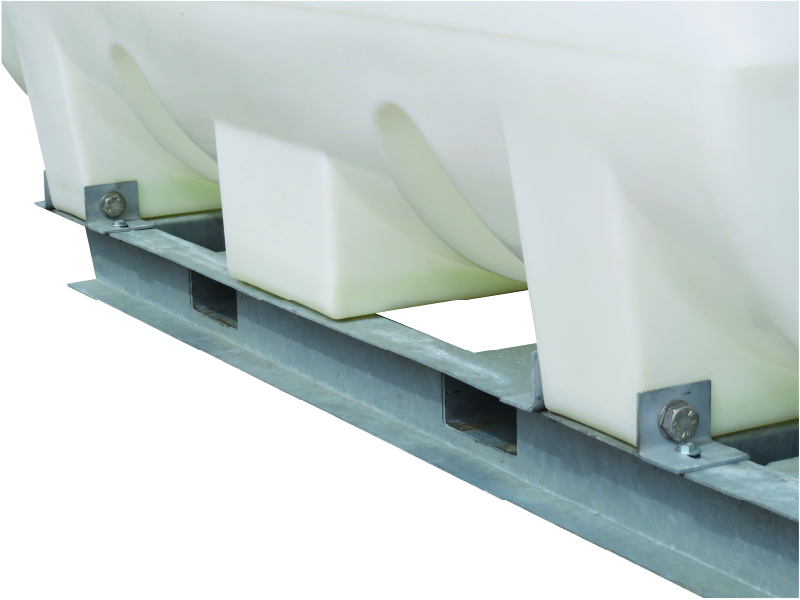

- Secure Fixing Points
- Integrated pin mounts allow the tank to be safely secured to vehicles, skids or permanent bases.
WHERE IS IT USED?
- Liquid transport for waste, slurry, fertiliser or molasses up to specific gravity 1.5G
- Dust suppression on construction, demolitions or haul road environments
- Agricultural use for spraying, washdown or liquid fertiliser storage
- AdBlue storage in farming or fleet maintenance operations.
FEATURES

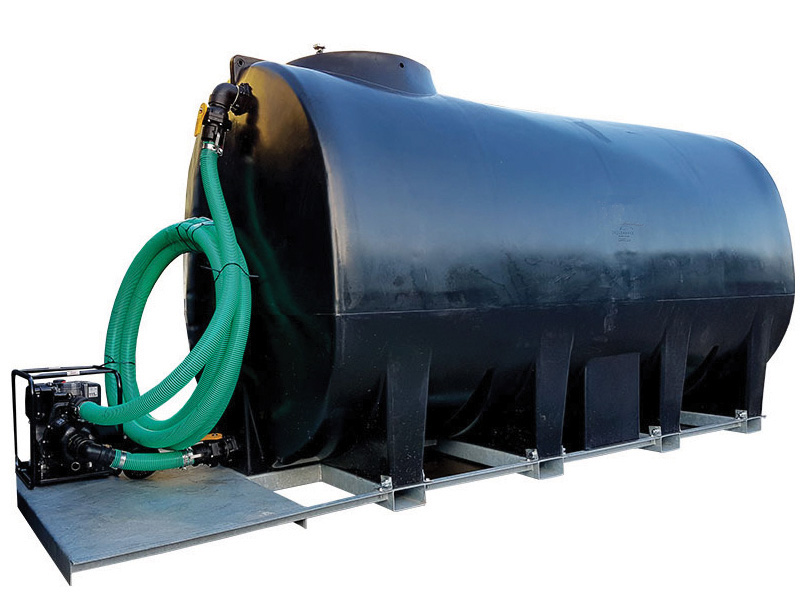

- Compatible with Pump Systems
- Designed to accommodate external pumping systems for easy emptying and liquid transfer on site.
- Available in Multiple Sizes
- A wide range of capacities to suit different waste volumes, from small site setups to large-scale applications.
- Easy to Clean & Maintain
- Smooth internal surfaces and accessible fittings make the tank simple to empty, rinse and service.
- Ideal for Temporary or Semi-Permanent Use
- Equally suited to short term installations or long term waste management where mains drainage is not available.
VIDEOS
No items found.
TECHNICAL DATA
Tuff Tank Name
Height
Width
Length
Dry Weight
Wet Weight*
Capacity
TT 500 xxi
48.5cm / 19"
210cm / 82"
292cm / 115"
140KG / 308Ibs
2413KG / 5309lbs
2273 L / 500 glns
- NOT DESIGNED TO BE LIFTED WITH LIQUID CONTENTS ON BOARD
- Please note: tank sizes quoted are subject to a +/-3% variation owing to temperature fluctuations.
- All TT4 models (TT500, TT750 & TT1000) introduced in Jan 2019 are 300cms long (+/-3%).
- The TT5 model (TT500 xxi) is an additional 500 gallon tank introduced in 2021 to cope with the huge Covid demand.
The TT500 xxi moulds in a smaller oven and was sized at 292cms long (+/-3%) - the internal geometry of the tank is adjusted to give 500 gallons.
Tuff Tank Name
Height
Width
Length
Dry Weight
Wet Weight*
Capacity
TT 750
69cm / 27"
210cm / 82"
300cm / 118"
180KG / 396lbs
3590KG / 7898lbs
3410 L / 750 glns
- NOT DESIGNED TO BE LIFTED WITH LIQUID CONTENTS ON BOARD
- Please note: tank sizes quoted are subject to a +/-3%variation owing to temperature fluctuations.
- All TT4 models (TT500, TT750 & TT1000) introduced in Jan 2019 are 300cms long (+/-3%).
- The TT5 model (TT500 xxi) is an additional 500 gallon tank introduced in 2021 to cope with the huge Covid demand.
The TT500 xxi moulds in a smaller oven and was sized at 292cms long (+/-3%) - the internal geometry of the tank is adjusted to give 500 gallons.
Tuff Tank Name
Height
Width
Length
Dry Weight
Wet Weight*
Capacity
TT 1000
90cm / 36"
210cm / 82"
300cm / 118"
220KG / 484lbs
4766KG / 10,485lbs
4546 L / 1000 glns
- NOT DESIGNED TO BE LIFTED WITH LIQUID CONTENTS ON BOARD
- Please note: tank sizes quoted are subject to a +/-3%variation owing to temperature fluctuations.
- All TT4 models (TT500, TT750 & TT1000) introduced in Jan2019 are 300cms long (+/-3%).
- The TT5 model (TT500 xxi) is an additional 500 gallon tank introduced in 2021 to cope with the huge Covid demand.
The TT500 xxi moulds in a smaller oven and was sized at 292cms long (+/-3%) - the internal geometry of the tank is adjusted to give 500 gallons.
Tuff Tank Name
Height
Width
Length
Dry Weight
Wet Weight*
Capacity
MTT 160
40cm / 16"
110cm / 44"
187cm / 74"
45KG / 99lbs
765KG / 1686lbs
727 L / 160 glns
- NOT DESIGNED TO BE LIFTED WITH LIQUID CONTENTS ON BOARD
- Please note: tank sizes quoted are subject to a +/-3% variation owing to temperature fluctuations.
- All TT4 models (TT500, TT750 & TT1000) introduced in Jan2019 are 300cms long (+/-3%).
- The TT5 model (TT500 xxi) is an additional 500 gallon tank introduced in 2021 to cope with the huge Covid demand.
The TT500 xxi moulds in a smaller oven and was sized at 292cms long (+/-3%) - the internal geometry of the tank is adjusted to give 500 gallons.
