Above Ground Waste Storage Tanks - Horizontal

...
If you need to transport liquids or require additional liquid storage at your premises, these Above Ground (Horizontal) Storage Tanks are the ideal solution. With WRAS-approval (black material only), these tanks are available in 5,000, 10,00 and 13,000 litres sizes, all specified to carry liquids up to a specific gravity of 1.5 (e.g. slurry). By linking tanks together you can create exactly the storage volume you require.
Horizontal Above Ground Water / Water Storage Tank
PRODUCT DESCRIPTION:
Applications will include emergency back-up drinking water supply through to temporary water supply at festivals and/or the storage of toilet effluent until it can be disposed of at the treatment works. For the transport of liquids, these horizontal tanks come fitted with inbuilt anti-surge baffles and pin mounting points to fasten to your vehicle. A metal mounting frame can also be specified, with or without a mounting plate to accept a suitable pump. A range of drainage options is available: from 2" to 4" ball valves and typically using threaded BSP fittings with camlock or Bauer connectors.

Contact Us to enquire about Above Ground Waste Storage Tanks.
TECHNICAL DATA
We reserve the right to amend the technical specification to improve the product without prior notification.
*We reserve the right to amend the technical specification without prior notification.
Volume
(litres)
5,000
10,000
13,000
Volume
(gallons)
1,101
2,203
2,863
Height
(mm)
1,690
1,800
2,200
Diameter
(mm)
1,700
1,900
1,900
Length
(mm)
2,500
4,200
4,200
Weight
(KGs)
250
550
690
Lifting
Points
2
2
2
Lid Size
(mm)
620
620
620
WRAS
Approved
Yes
Yes
Yes
Standard
Outlet
2"
2"
2"
TECHNICAL ADVANTAGES
  • Built in lifting points
  • Flat base for stability - mount on a flat surface without support
  • Pin mounting system for affixing to vehicle, trailer or frame without the need for mounting straps
  • Heavy weight material
  • Built in surge baffles to increase stability and reduce surge/slosh during transportation
  • 620mm vented tank lid
MULTIPLE APPLICATIONS
  • Liquid transport: can be used for transport of liquids up to specific gravity of 1.5 (up to liquid fertiliser to molasses)
  • Water bowser hire for clean water supply
  • Potable water for public events (black, boat blue or natural coloured tanks only - boat blue and natural may incur price uplift from black)
  • Static storage: bulk storage for water/ waste (e.g. toilet waste) for static use by the toilet servicing industry
  • Used in construction and civil engineering environments where mains supply is not available
  • Dust suppression
  • Sprayer tank for agricultural purposes
  • Storage of AdBlue
  • Construction and civil engineering environments where mains supply is not available
  • Mixer tank
  • Waste carriers' premises
UPGRADE KITS
  • 2" Linking kit with 2” x 2" Drain valves and 1m Linking hose
  • 3" Linking Kit with 2 x 3” Drain valves and 1m Linking hose

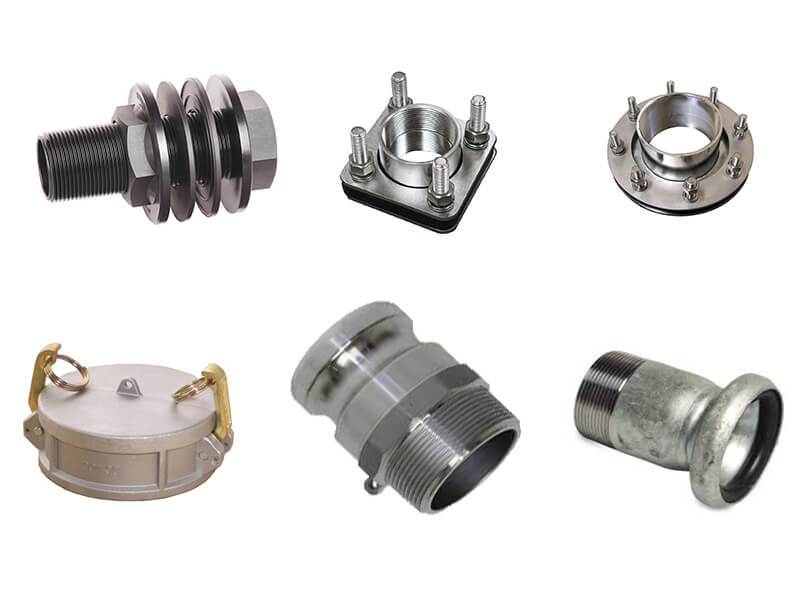

  • 2", 3" and 4" bulkhead fittings in stainless steel
  • 2", 3" and 4" ball valves to connect with a range of hose connectors / adaptors
  • 2", 3" and 4" hose adaptors / connectors - typically camlock and/or Bauer
  • Galvanised mounting frames, with or without pump mounting plate
  • Baffle balls to further reduce slosh and surge during transport
  • Mushroom vents when filling or evacuating tanks with > 500 litres/minute
WARNINGS
  • Consider bunded tanks to avoid spillages
  • Industrial tanks can be made with increased wall thickness catering for specific gravities of contents between 1SG - 2SG
  • Delivery on a 44-foot articulated lorry
  • It is the customer’s responsibility to offload - otherwise a HIAB or fork-lift enabled truck may be required
  • Delivery is kerbside only - the delivery driver is not indemnified to install the product
  • Only lift or move when empty
  • PLEASE CONSULT OUR LITERATURE ON CORRECT INSTALLATION OF TANKS:
    PAY PARTICULAR ATTENTION TO THE BASE REQUIRED TO SUPPORT THE TANK WHEN FULL - WE RECOMMEND A CONCRETE BASE
    Tank base should be a minimum of (600mm) (24") larger than the diameter of the tank and should have a minimum depth of:
    - 102mm (4") for tanks up to 2,500 litres
    - 152mm (6") for tanks 4,000 litres to 10,000 litres
    - 204mm (8") for tanks over 10,000 litres
PHOTO GALLERY
Horizontal Tank Effluent or WRAS certified potable water tanksAbove Ground Horizontal Storage TankHorizontal TankHorizontal TankHorizontal TankHorizontal Tank
Horizontal Waste / Water Tanks. Ideal for Truck Mounting
(10,000 Litre Tank depicted)
PRODUCT GUARANTEE: 10 YEARS SUBJECT TO NORMAL WEAR, TEAR AND USAGE CONDITIONS
